EASY FI-CON TYPE-X

FI CON TYPE-X EASY mode exclusive operation application.

This application is for FI CON TYPE-X only. It can not be used for the conventional FI CON TYPE-ENIGMA Z 125 or DILTS-JAPAN ENIGMA series.

This application is only for EASY mode which can adjust the ignition time. There is a dedicated application in EXPERT mode that can set the ignition time.

This application can be downloaded for free. When it is free, you can connect with all FI - CON TYPE - X, but only the tachometer screen is displayed. (Only tachometer and TPS are displayed).
In order to set various functions of FI CON TYPE-X, you need to purchase the model data corresponding to FI CONTYPE-X you have from the model selection screen.

When purchasing and selecting model data, the following functions can be used.

- Preset data combined with TAKEGAWA made boa up kit etc. are prepared. Preset data can be easily written to FI - CON.
- + 20 / - 20 degree spark advance / delay angle can be adjusted for each engine rotation / throttle position. It is also possible to adjust the dwell time.

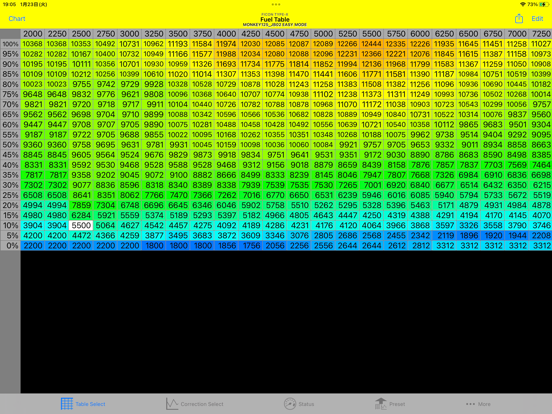

- The fuel injection amount can be set for each engine rotation / throttle position.
- Fuel correction at idling can be performed.
- Startability and idling stabilization correction function when using a big injector. (Only for compatible models)
- Adjustment of fuel injection time by engine temperature and intake air temperature is possible.
- It is possible to set injection timing at each rotation speed.
- Various maps can be displayed in 3D graph.
- Two maps can be put inside FI - CON, and it can be switched with an external switch.
- In real time, you can display tachometer, throttle opening monitor, injector opening / closing rate, oil / water · engine temperature (depending on model),Voltage (Applicable models only).
- Display the current engine speed and throttle position in real time in the fuel map.
- Revolution Limit can be set .
- Pit-in limit can be set (Applicable model only)
- Digital acceleration pump can be set.
- It is possible to correct the TPS sensor according to the actual machine.
- You can make several fuel data and save it, you can change it immediately when you need it.
- It corresponds to Japanese and English.

No pairing is necessary. On the Bluetooth setting screen, FI-CON is not searched. Please turn on Bluetooth on the Bluetooth setting screen, then exit the setting screen with the Hom
