CCTV Cable and PoE Calculator
CCTV Cable and PoE Calculator Summary
CCTV Cable and PoE Calculator is a mobile iOS app in Tools by Kieron Mcdonough. Released in Oct 2019 (6 years ago). Store metadata: updated Apr 16, 2024.
Store info: Last updated on App Store on Apr 16, 2024 .
0★
Ratings: 0
Screenshots
App Description
Simply enter number of cameras to be powered, cable length, power supply used and current or watts per camera. Enter the maximum volt drop percentage in 'Settings' that the equipment would tolerate, for example 10%.
Results return AWG (American Wire gauge), cross sectional area of cable and total power supply current required for a solid cable. For multi-stranded cable enter number of strands and strand diameter. Results show suitability of that cable. Note results are estimate only and temperature and other factors can change the result.

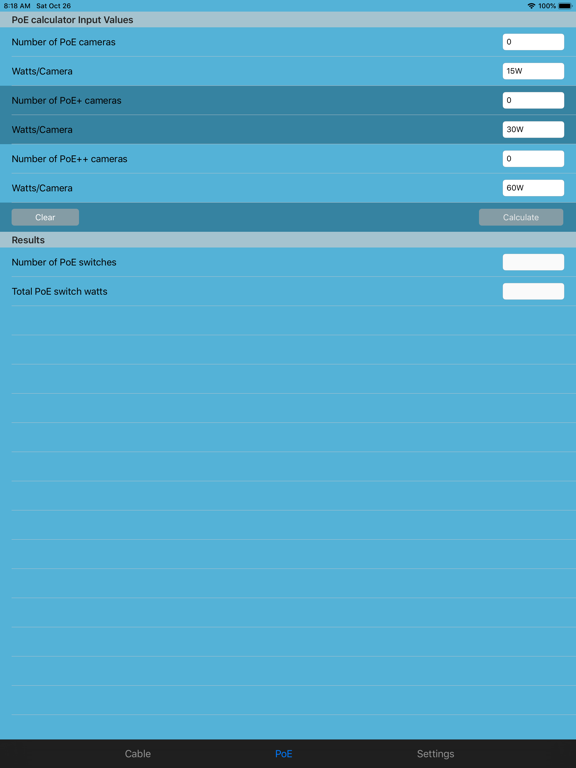

The PoE calculator allows the designer to add PoE, PoE+ and POE ++ camera quantities and specify PoE wattage for each category.
Results show how many PoE switches are required and total switch wattage required.
