Timber Engineering Calculator

Timber Engineering Calculator contains 55 Calculators for different Timber and Civil Engineering parameters.

Comprehensive Calculator for Timber and Wood-works.

*** Available in Metric (SI) and Imperial (USCS) Units ***

• Area of Section (Rectangular and Square Beam)
• Moment of Inertia (Rectangular and Square Beam)
• Distance from Axis to Extremities of Section (Rectangular and Square Beam)
• Radius of Gyration (Rectangular and Square Beam)
• Section Modulus (Rectangular and Square Beam)

• Maximum Fiber Stress (Rectangular Timber Beam)
• Maximum Fiber Stress using Section Modulus (Rectangular Timber Beam)
• Horizontal Shearing Stress (Rectangular Timber Beam)
• Horizontal Shearing Stress (Rectangular Timber Beam with a notch in the lower face at the end)
• Modified Total End Shear (Concentrated Loads)
• Modified Total End Shear (Uniform Loading)

• Allowable Unit Stress on Timber Columns (Single Piece of Lumber/Group of Pieces glued together)
• Allowable Unit Stress on Timber Columns (Square/Rectangular Cross Section)
• Allowable Unit Stress on Timber Columns (Circular Cross Section)
• Allowable Unit Compressive Stress (Load is at an angle to the grain)
• Allowable Stress - Rectangular Section (National Design Specification)

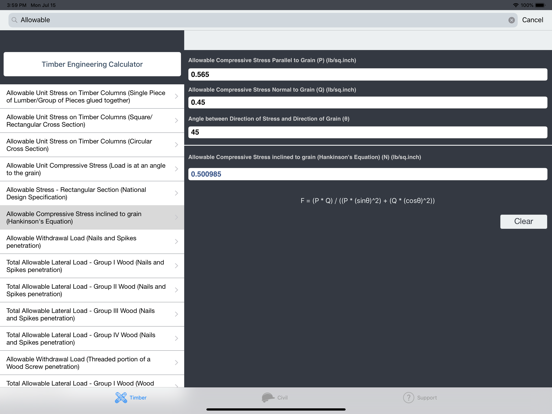

• Allowable Compressive Stress inclined to grain (Hankinson's Equation)

• Extreme-Fiber Bending - Adjusted Design Value
• Tension - Adjusted Design Value
• Shear - Adjusted Design Value
• Compression perpendicular to the grain - Adjusted Design Value
• Compression parallel to the grain - Adjusted Design Value
• End grain in bearing parallel to the grain - Adjusted Design Value
• Modulus of Elasticity - Adjusted Design Value

• Size Factor
• Volume Factor (Southern Pine)
• Volume Factor (Other Species)
• Radial Stress induced by a Bending Moment
• Curvature Factor
• Bearing Area Factor
• Slenderness Ratio for Beams

• Allowable Withdrawal Load (Nails and Spikes penetration)
• Total Allowable Lateral Load - Group I Wood (Nails and Spikes penetration)
• Total Allowable Lateral Load - Group II Wood (Nails and Spikes penetration)
• Total Allowable Lateral Load - Group III Wood (Nails and Spikes penetration)
• Total Allowable Lateral Load - Group IV Wood (Nails and Spikes penetration)

• Allowable Withdrawal Load (Threaded portion of a Wood Screw penetration)
•
