Circuits: 3-Phase Analysis
Circuits: 3-Phase Analysis Summary
Circuits: 3-Phase Analysis is a free iOS app in Tools by Gabriel Elias Gabrie Kattan. Released in Mar 2026 (4 months ago). It has 1.00 ratings with a 3.00★ (mixed) average. Based on AppGoblin estimates, it reaches roughly 21 monthly active users . Store last updated Mar 31, 2026
Circuits: 3-Phase Analysis SDKs Summary
App not yet scanned for SDKs.
3★
Ratings: 1.00

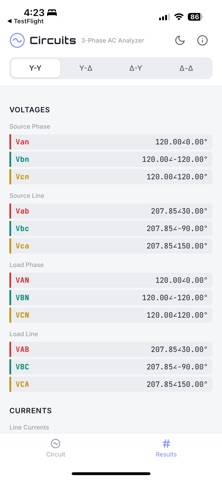

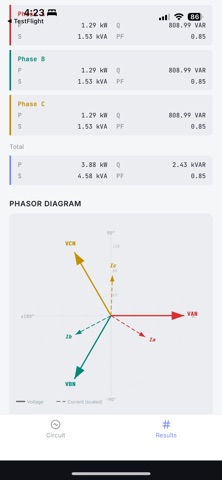

Screenshots
App Description
Circuits is a free, interactive tool for analyzing 3-phase AC circuits. Built for electrical engineering students and professionals who need quick, accurate results.
TAP. ENTER. CALCULATE.
Tap any component on the interactive circuit diagram to enter values in rectangular or phasor form. Press Calculate to get complete results instantly.
ALL FOUR CONFIGURATIONS
Y-Y (Wye-Wye)
Y-Delta (Wye-Delta)
Delta-Y (Delta-Wye)
Delta-Delta (Delta-Delta)
COMPLETE ANALYSIS
Source, line, and load voltages
Line and phase currents
Neutral current (Y-Y)
Per-phase and total power (S, P, Q, PF)
Interactive phasor diagram
FLEXIBLE INPUT
Balanced or unbalanced sources and loads
Positive, negative, or custom phase sequences
Source impedance, line impedance, and neutral impedance
Rectangular (a + jb) or phasor (Mag angle) entry
PRIVACY FIRST
Runs entirely on your device. No account, no tracking, no data collection. Your values never leave your phone.
