FieldSketch: Camera SitePlans

Survey and draft — all by yourself.

The site inspection app built for architects.

■ No more two-person tape measure walks
FieldSketch uses your iPhone's motion sensors to measure distances as you walk.
Aim the crosshair, tap to drop a pin. One site in 10 minutes, calibration included.
No need to book an assistant.

■ CAD drawings straight from the field

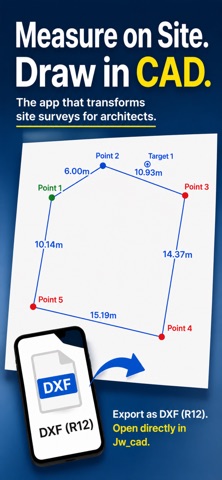

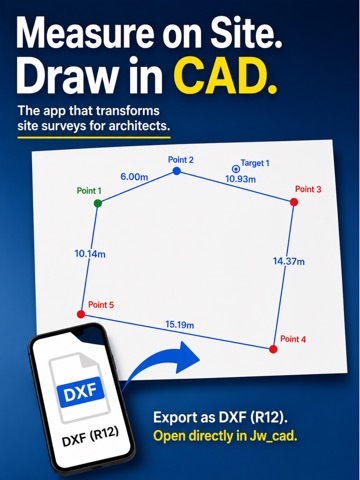

Export as DXF (R12) — opens directly in Jw_cad and other CAD software.
Register a cadastral PDF in advance and the app automatically merges it with your field data.

■ Everything captured in one place
Photos are taken automatically at each measurement point.
Record video while you measure to document the site.
Points, distances, and photos compiled into a PDF report — ready for same-day delivery.

■ 4 simple steps
Calibration → Site boundary → Surroundings (gutters, roads) → Landmarks (manholes, etc.).
Guided workflow. Easy to undo and redo.

■ Accuracy
Approx. 3 cm error over 30 m (verified on device). No LiDAR required — works on any iPhone.
A 3-point calibration at the start improves accuracy further.
※ Designed for site reconnaissance and planning. Not intended for legal boundary surveys.

■ Pricing
Measurement, photos, video, and PDF export are free forever.
CAD (DXF) and CSV export require a Premium plan (monthly / lifetime).
Try all features free for 14 days.
